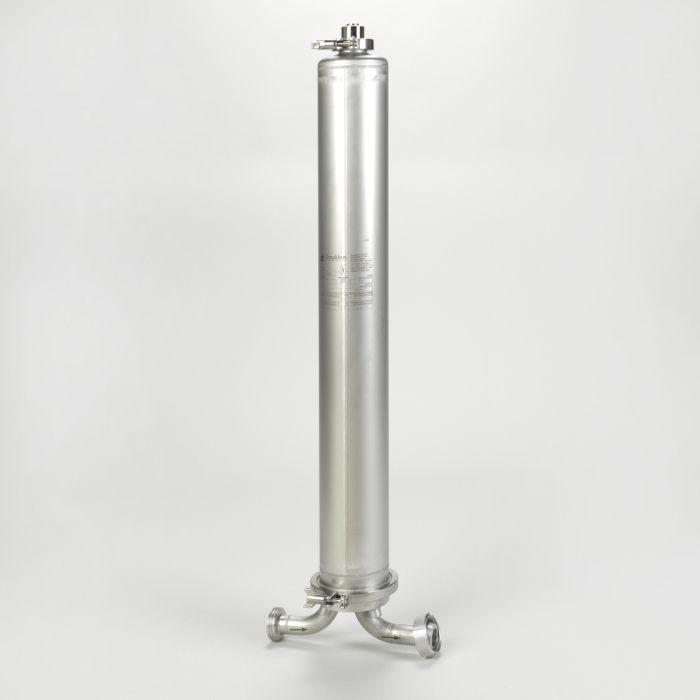

КОРПУС ФИЛЬТРА, PF-EG 0075, STANDARD, DN 25 MILKPIPE, 1.4404 1C073228 Donaldson
1.00 ₽
Параметр
Значение
Model:
PF-EG
Housing Size:
0075
Element Size:
Size 30/3
Element Type:
Code 7 Connection
Connection Type:
DN 25 DIN 11851
Flow Rate (Liquid):
75 Л/мин(20 Галлоны/мин)
Maximum Operating Pressure:
10 Бар(145 Фунты/кв. дюйм)
Максимальная рабочая температура:
150 C(302 F)
Minimum Operating Temperature:
-25 C(-13 F)
Vent Connection:
G 1/4
Filter Housing Material:
1.4404 / 316 Stainless Steel
Housing Gasket Material:
EPDM
Inner Surface Finish:
Electropolished to Ra 32 µin / 0.8 µm
Outer Surface Finish:
Electropolished to Ra 32 µin / 0.8 µm
Длина:
125 Миллиметры(4.92 Дюймы)
Высота:
1049 Миллиметры(41.30 Дюймы)
Ширина:
250 Миллиметры(9.84 Дюймы)
Масса:
7.7 Кг(16.98 Фунты)
PED 2014/68/EU:
Yes
Materials According to EC1935 2004:
Yes
Materials According to FDA CFR Title 21:
Да
EAC:
Yes
