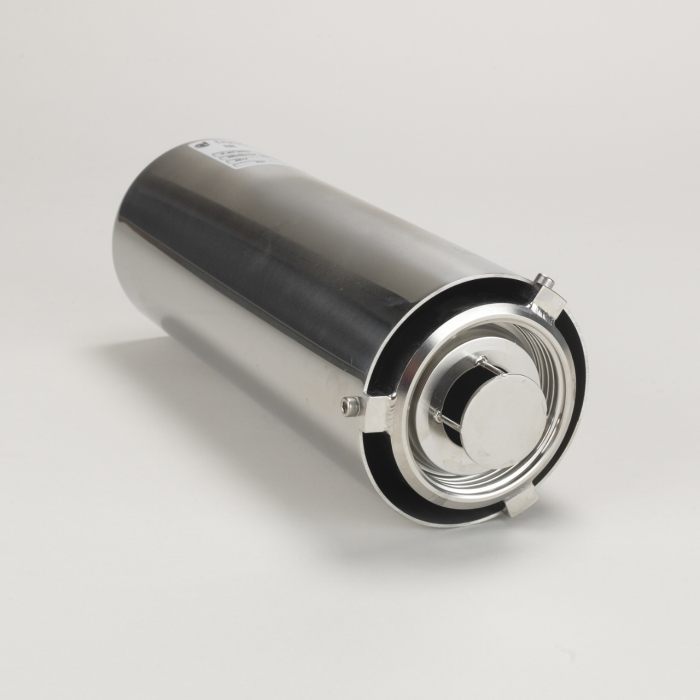

Donaldson 1C643996 – КОРПУС ФИЛЬТРА, P-BE 0027, DN 40 MILKPIPE, 1.4404
1.00 ₽
Параметр
Значение
Model:
P-BE
Housing Size:
0027
Element Size:
Size 05/25
Element Type:
UF Push-In Connection
Connection Type:
DN 40 DIN 11851
Flow Rate Nominal (Air) at 40 mbar Δp:
192 m3/h
Максимальная рабочая температура:
200 C(392 F)
Filter Housing Material:
1.4404 / 316 Stainless Steel
Inner Surface Finish:
Polished to Ra 63 µin / 1.6 µm
Outer Surface Finish:
Polished to Ra 63 µin / 1.6 µm
Длина:
104 Миллиметры(4.09 Дюймы)
Высота:
168 Миллиметры(6.61 Дюймы)
Ширина:
104 Миллиметры(4.09 Дюймы)
Масса:
2.2 Кг(4.85 Фунты)
PED 2014/68/EU:
Yes
Materials According to EC1935 2004:
Yes
Materials According to FDA CFR Title 21:
Да
EAC:
Yes
